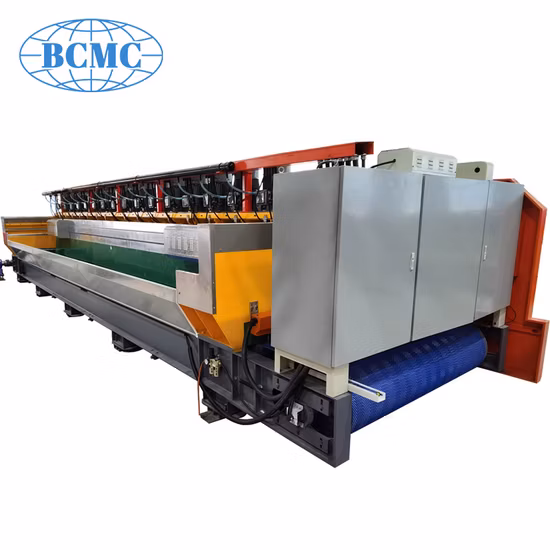

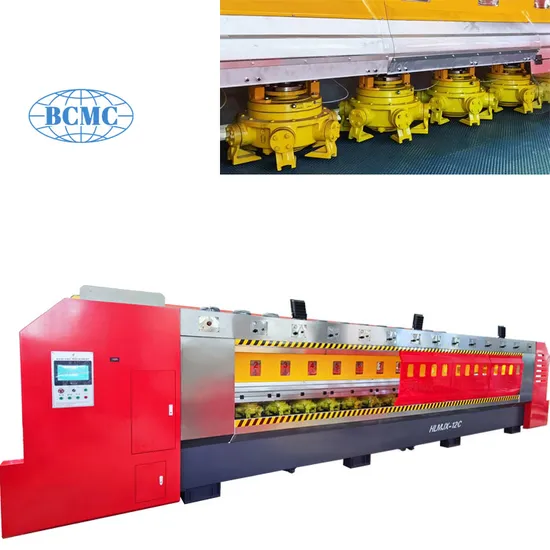

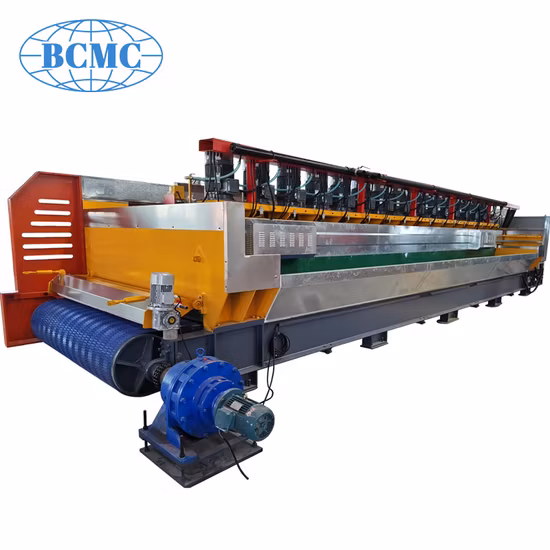

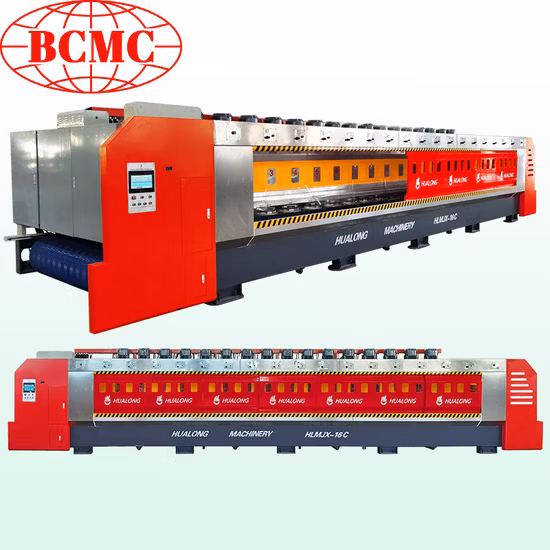

High Quality Bcmc Stone Machinery Bclp-12c 12 Heads Fully-Automatic Disk Head Line Stone Polishing Machine for Sale for Granite in Egypt Saudi

Basic Info

Model NO.	BCLP-12C
After-sales Service	Provided
Warranty	12 Month
Type	CNC Cutting Machine
Usage	Ceramics, Granite, Marble, Quartz
Application	Machinery & Hardware, Art & Craft, Mineral Industry, Stone Industry
Source Voltage	380V
Automation	Automatic
Cutting Ability	High Speed
Control	CNC
Certification	ISO, CE
Overall Weight	21000
Work Bench Specifications	3500*2100
Control System	PLC
Transport Package	Plastic Packing
Specification	9700*2200*2650 mm
Trademark	BCMC
Origin	Putian, Fujian, China
HS Code	8464109000
Production Capacity	50 Pieces/Month

Product Description

BCLP-12C Automatic Continuous Stone line polishing Machine specially fits for griding and polishing the slabs and strips of granite and other natural and engineered stones, moving on a conveyor belt, using a series of griding heads or resin abrasive disc.

This machine has adopted international advanced technology to be suitable for the automative polishing of marble and granite slabs. It has brand-new design, reasonable structure, stable performance, high efficiency, friendly interface and high degree of intelligence. It is also with merits of small covering space, low consumption rate of polishing material and power, high yield and etc. This equipment is especially good for the polish of valuable slabs.

Note: This machine has multiple grinding heads which can be selected different number by customers, it can be cutomized of 8 heads, 12 heads, 16 heads, 12 heads and 24 heads according to cutomers' requirement.

Parameter:

TECHNICAL DATA BCLP-12C
Configuration	No. of heads	pcs	12
	Spindle motor power	kw	15
	Gross power	kw	201
Main Performance Parameters	Useful working wdth	mm	400-1300
	Useful working thickness	mm	10-80
	Belt advancing speed	mm	0-3800
	Water consumption	m3/h	20
Measurement	Gross weight	kg	21000
	Dimension (L x W x H)	cm	9700*2200*2650

Main Features:
* PLC terminal controlling system asopted and parameters setting through LCD touch screen offer easy operation.
* Sensor on the machine checks the shape of slabs automatically and send signal to the PLC to control the movement of the bridge and polishing heads accordingly.
* Conveying belt and the crossbeam adopt frequency conbersions for speed adjusting
* Poly-V belts used for dribing polishing spindles which has high strength values and that keep their structural properties against sudden strains.
* Central automatic liquid lubrication system to enhance working smoothness and service life.
* High quality sub and low consumption of polishing abrasives.
* Conveyor self-cleaning and stone chip removing system.

Advantages
* Perfect surface levelling
* Electric and electronic components in international standards.
* "Fin-honed" surface finish to reduce the number of the following leveling units and consequently and the dressing costs.
* High efficiency
* User-friendly & ECO-friendly
* Easy for loading and unloading
