Automatic Stone Cutting Machine Marble Cutting Machine Slab Cutting Machine (HQ400-600-700)
Automatic Stone Cutting Machine Marble Cutting Machine Slab Cutting MachineMachine model: HQ400-600-700 Main structure o;
Basic Info
Model NO. | HQ400-600-700 |
Automation | Automatic |
Cutting Ability | High Speed |
Control | CNC |
Certification | ISO, CE |
Blade Tilting | 45 Degrees for Miter Cuts |
Table Tilting | 0-85 Degrees |
Table Rotating | 0-360 Degrees |
Table Size | 3200*2000mm |
Max. Cut Size | 3200*2000*230mm |
Spindle Motor | 18.5kw 25HP |
Total Power | 26.5kw |
Weight | 7500kg |
Transport Package | Plastic Packing |
Specification | 6*5.7*3.5m |
Trademark | AGA |
Origin | Xiamen, China |
HS Code | 84641010 |
Production Capacity | 200 Sets/Month |
Product Description
Automatic Stone Cutting Machine Marble Cutting Machine Slab Cutting MachineMachine model: HQ400-600-700Main structure of this stone cutting machine is made of strong cast iron and stainless steel for protection.This machine comes with laser guide for precision cutting everytime. It's a good working horse for cutting granite, marble, quartz, sandstone, limestone, and other materials.We sent it quite a lot to customers for cutting slabs, tiles, countertops, vanitytops, etc.
The cutting machine blade goes left and right, up and down, the bridge beam moves forward and backward. Four pistons head provides stable cutting.Blade tilting 45 degrees for miter cuts is optional for model HQ700.

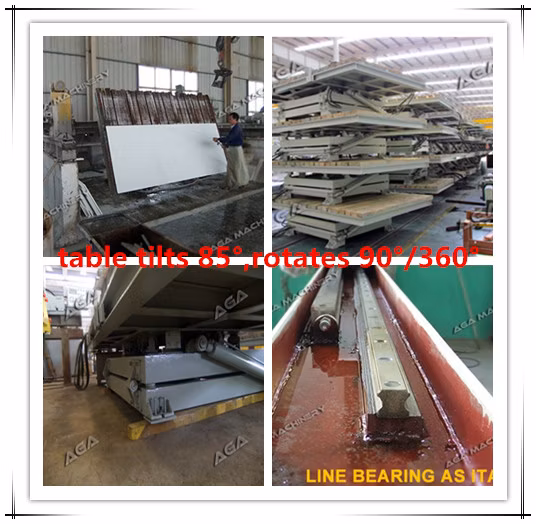

Functional machine table tilts 0-85 degrees for easy load of stone materials, besides, it can rotate 0-90 degrees to change the cutting position automatically. Table rotating 0-360 degrees is also optional.

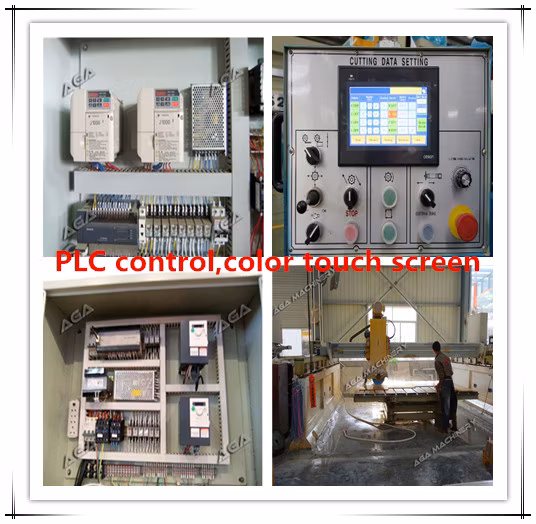

The stone cutting machine is microcomputer control and works automatically by program, color touch screen panel makes simple oepration.
Stone cutting machine marble cutting machine tile cutting machine specification:
Model | HQ400 | HQ600 | HQ700 |
Blade Size | Φ300-Φ450 mm12"-18" | Φ300-Φ600 mm12"-24" | Φ300 - Φ700 mm12" -28" |
Blade Tilting | N/A | N/A | 0°- 50° |
Table Size (L×W) | 3200×2000 mm 126"×79" | ||
Table Rotation | 0°- 90° / 360° | 0°- 360° | |
Table Turnover | 0°- 85° | ||
Max. Cut (L×W) | 3200×2000 mm 126"×79" | ||
Max. Cut Depth | 110 mm 4" | 180 mm 7" | 230 mm 9" |
Spindle Motor | 15 Kw 20HP | 15 Kw 20HP | 18.5 Kw 25HP |
More stone cutting machines for option:
FAQ:1) Payment:T/T 30% deposit, 70% before shipment.2) Delivery time:The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.3) Shipment:For FOB or CIF price, we will arrange shipment for you.4) Documents after shipment:After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.AGA Machinery:AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
Key words:Stone cutting mahcine, granite cutting machine, bridge cutter machine, bridge cutting machine, marble cutting machine, bridge sawing machine, slab cutting machine, slab sizing machine, tile cutter, bridge cutter, cnc cutting machine, cnc machine, 5 axis cutting machine, china cnc machine, etc.Contact Information:
